LQP02系列高频电感

534

LQP02系列超小体积射频电感

LQP02系列,使用光刻工艺制作电极,以及对线圈的细微加工,实现小尺寸、高Q值特性的产品,同时使得产品阵容呈现L值的窄偏差、较细间隔的特征。逐渐成为主流的0201/0603尺寸、业界最小的01005/0402尺寸都有范围较广的产品阵容,应对小型化的趋势。在应用方面,适合对小尺寸、窄偏差、窄感值间隔有要求的RF部分的匹配、谐振电路。另外,也可以用于对小尺寸、低Rdc有要求的扼流电路。


LQP02小尺寸实现高Q值

薄膜型电感器LQP系列有小型的0201/0603尺寸、01005/0402尺寸,与同行业中其他公司的叠层型工艺相比,Q值更高。请参照图1。

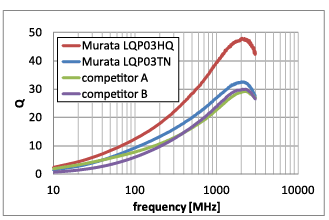

图1: 0201/0603尺寸LQP03系列,与同业叠层产品的Q值特性比较

(频率: 10nH)

型号品名尺寸代号 inch (mm)电感徝电感徝 偏差额定电流 (Itemp)Rdc (max.)SRF (min.)
LQP02TN0N2B02#01005 (0402)0.2nH±0.1nH320mA0.50Ω20000MHz
LQP02TN0N2C02#01005 (0402)0.2nH±0.2nH320mA0.50Ω20000MHz
LQP02TN0N3B02#01005 (0402)0.3nH±0.1nH320mA0.50Ω20000MHz
LQP02TN0N3C02#01005 (0402)0.3nH±0.2nH320mA0.50Ω20000MHz
LQP02TN0N4B02#01005 (0402)0.4nH±0.1nH320mA0.50Ω18000MHz
LQP02TN0N4C02#01005 (0402)0.4nH±0.2nH320mA0.50Ω18000MHz
LQP02TN0N5B02#01005 (0402)0.5nH±0.1nH320mA0.50Ω18000MHz
LQP02TN0N5C02#01005 (0402)0.5nH±0.2nH320mA0.50Ω18000MHz
LQP02TN0N6B02#01005 (0402)0.6nH±0.1nH320mA0.50Ω17000MHz
LQP02TN0N6C02#01005 (0402)0.6nH±0.2nH320mA0.50Ω17000MHz
LQP02TN0N7B02#01005 (0402)0.7nH±0.1nH320mA0.50Ω16500MHz
LQP02TN0N7C02#01005 (0402)0.7nH±0.2nH320mA0.50Ω16500MHz
LQP02TN0N8B02#01005 (0402)0.8nH±0.1nH320mA0.50Ω16500MHz
LQP02TN0N8C02#01005 (0402)0.8nH±0.2nH320mA0.50Ω16500MHz
LQP02TN0N9B02#01005 (0402)0.9nH±0.1nH320mA0.50Ω13000MHz
LQP02TN0N9C02#01005 (0402)0.9nH±0.2nH320mA0.50Ω13000MHz
LQP02TN10NH02#01005 (0402)10nH±3%140mA2.50Ω4000MHz
LQP02TN10NJ02#01005 (0402)10nH±5%140mA2.50Ω4000MHz
LQP02TN11NH02#01005 (0402)11nH±3%140mA2.80Ω3500MHz
LQP02TN11NJ02#01005 (0402)11nH±5%140mA2.80Ω3500MHz
LQP02TN12NH02#01005 (0402)12nH±3%140mA2.80Ω3500MHz
LQP02TN12NJ02#01005 (0402)12nH±5%140mA2.80Ω3500MHz
LQP02TN13NH02#01005 (0402)13nH±3%140mA3.20Ω3000MHz
LQP02TN13NJ02#01005 (0402)13nH±5%140mA3.20Ω3000MHz
LQP02TN15NH02#01005 (0402)15nH±3%140mA3.20Ω3000MHz
LQP02TN15NJ02#01005 (0402)15nH±5%140mA3.20Ω3000MHz
LQP02TN16NH02#01005 (0402)16nH±3%140mA3.50Ω2500MHz
LQP02TN16NJ02#01005 (0402)16nH±5%140mA3.50Ω2500MHz
LQP02TN18NH02#01005 (0402)18nH±3%140mA3.50Ω2500MHz
LQP02TN18NJ02#01005 (0402)18nH±5%140mA3.50Ω2500MHz
